# App Links Developer Guide
## **Overview**
This guide describes URL Scheme connection and various APIs of the ONE store App.
### **URL Scheme Connection of ONE store App**
* You can use URL scheme to open an app download page of ONE store in your mobile apps and browsers. Strings like `http://`, `ftp://`, `market:`// are called `URL scheme’` The way to execute an App via the URL scheme is as follows:
* A URL scheme is passed to Android system when a user clicks a hyperlink with it in an app or a web page
* The system checks whether there is an app installed in the device which is directly executable through the URL scheme
* If there is one, the system runs the app, passing over the URL scheme
* While being executed, the app would perform certain features by referring to the contents included in the URL scheme.
{% hint style="success" %}
If you use the URL scheme through a mobile browser, you would need to implement an exception handling feature just in case ONE store is not installed in a device
{% endhint %}
### **URL Scheme Configuration**
* For more on each call specification, refer to Tools [Reference.](https://onestore-dev.gitbook.io/dev/chi/tools/app-links/reference)
### **App/Game Detail Call**
* In Product View, the clients of each mobile operator move to ‘See Details’ screen for the corresponding PID (‘See Details’ screen of a single product).
{% tabs %}
{% tab title="Specification" %}
`onestore://common/product/{상품PID}`
{% endtab %}
{% tab title="Sample" %}
`onestore://common/product/0000252337`
{% endtab %}
{% endtabs %}
* #### **Search Call**
* In Search View, the ONE store App shows the search result screen for the corresponding query.
{% tabs %}
{% tab title="Specification" %}
`onestore://common/search/{query}`
{% endtab %}
{% tab title="Sample" %}
`onestore://common/search/naver app`
{% endtab %}
{% endtabs %}
* #### Request Update (Automatic Installation)
* If the corresponding product is not the latest version, the updated version is automatically downloaded and installed at the update request of App/game products. The update works when the package name of the product to request update does match the package name of the product to be downloaded.
{% tabs %}
{% tab title="Specification" %}
`onestore://common/product/bg_update/{PID}`
{% endtab %}
{% tab title="Sample" %}
`onestore://common/product/bg_update/0000252337`
{% endtab %}
{% endtabs %}

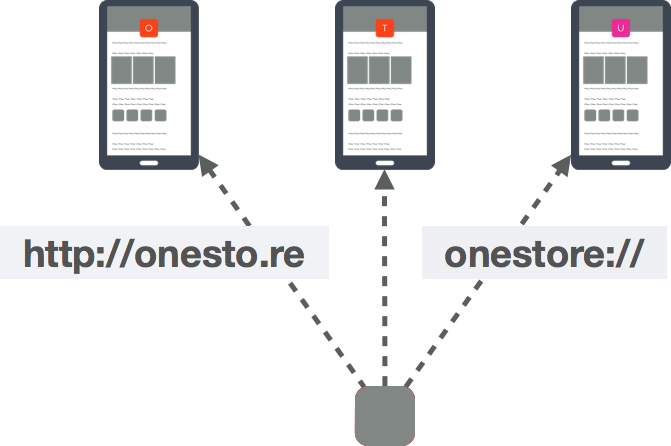

### **Connection to Shorten URLs**
* You can easily generate a connection address of App detail page by using PID.
Specification
{% tabs %}
{% tab title="Specification" %}
`https://onesto.re/{PID}`
{% endtab %}
{% tab title="Sample" %}
`https://onesto.re/0000252337`
{% endtab %}
{% endtabs %}

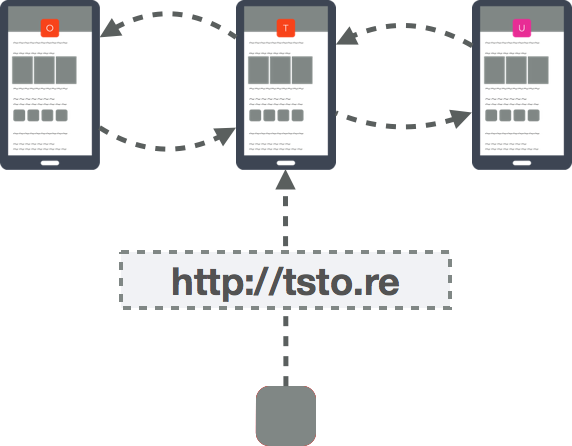

{% hint style="success" %}
Process Redirects of Current Specification
The current connection specification individually used in each store is automatically redirected. That means, an additional development is separately needed for the currently published products.
{% endhint %}
| Current Spec. | Redirect | New Spec. |
| -------------------------------------------------------------------------------------------------- | -------------------------------------------------------------------------------------------------- | -------------------------------------------------------------------------------------------------- |
|  |  |  |
### **Server side API**
* #### **Check PID & Version Name with packageName**
* The API must be called using the **GET** method.
* If the product has already been launched, you can check PID and a range of information with packageName openAPI
* For more detail, refer to Tool [Reference.](https://onestore-dev.gitbook.io/dev/chi/tools/app-links/reference)
{% tabs %}
{% tab title="Request Specification" %}
`GET https://oneapi.onestore.net/api/devcenter/getAppVersion/v1?pkgNm={package name}&deviceModelCd={model name}&osVer={OS version}&sdkVersion={SDK version}`
{% endtab %}
{% tab title="Request Sample" %}
`https://oneapi.onestore.net/api/devcenter/getAppVersion/v1?pkgNm=com.nexon.bluearchiveone&deviceModelCd=SM-N960N&osVer=11.0&sdkVersion=30`
{% endtab %}
{% tab title="Response Sample" %}
```java
{
"result": {
"code": "000",
"desc": "success"
},
"prodId": "0000758646",
"verNm": "1.36.120365",
"verCd": "120365",
"title": "블루 아카이브",
"topMenuId": "DP01",
"topMenuNm": "게임",
"menuId": "DP01004",
"menuNm": "롤플레잉",
"sellerNm": "(주) 넥슨",
"game": true
}
```
{% endtab %}
{% endtabs %}
---
